LiFePO4

CY-12V200Ah

12.8V 200Ah LiFePO4 battery

Name: 12.8V 200Ah LiFePO4 battery
Brand: CY ENERGY
SKU: CY-12V200Ah

A 200Ah LiFePO4 platform for RV and auxiliary power projects. An ABS enclosure and integrated battery management support a practical starting point for your system design.

12.8VNominal voltage

200AhCapacity

2560WhNominal energy¹

Request a quotation Request a sample

Wholesale & OEM enquiries · Pricing, MOQ and lead time confirmed per configuration.

Ask about this model on WhatsApp

Integrated battery management
ABS enclosure
Project-specific integration review

AI-generated application illustration. Vehicle compatibility is confirmed per project.

RV, VAN & CAMPER HOUSE POWER

Build a house-power system around your use.

For RV distributors, van builders and professional installers. Review daily energy use, charging sources and the installation together before selecting your supply configuration.

01
Loads & operating time
List the daily loads, inverter rating and surge demand. Use the sizing tool for an initial estimate, then check the selected pack’s current limits.
02
Every charging source
Review shore power, solar control and any alternator or DC-DC charging. Confirm the charge profile and low-temperature behaviour of the selected configuration.
03
Space & installation
Measure the battery bay, terminal clearance and mounting arrangement. Check cable protection and any proposed parallel connection against the current model documentation.

Review the fit for your project

BEFORE THE FIRST BATCH

Start with a useful sample plan.

Check the actual loads and all charging sources in the intended installation. Agree any temperature, monitoring and accessory requirements before the batch order.

Request a sample

A CLOSER LOOK / CY-12V200Ah

See the sample from every side.

An original product video of the CY ENERGY 12V200Ah series. See the enclosure and handling from several angles before discussing the final configuration.

12V200Ah sample shown. Final configuration is confirmed with your quotation; label symbols do not replace model-specific test documents.

Ask for current model details

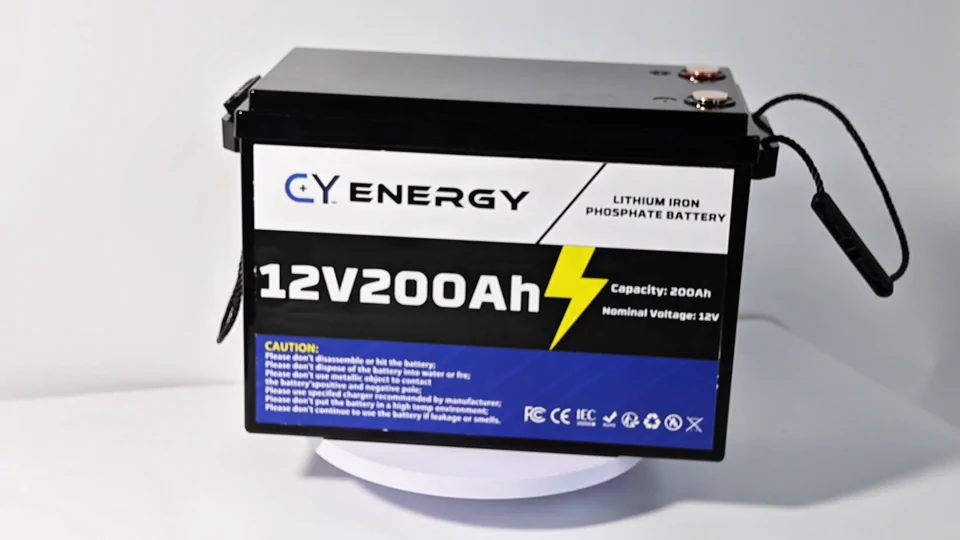

Original CY ENERGY 12V200Ah product sample — Source: supplied CY ENERGY product video. No audio. Loads only when played.

TECHNICAL REFERENCE

Know the details.

A clear specification is the starting point for a compatible battery system.

Open printable specification

12.8V 200Ah LiFePO4 battery specifications
Nominal voltage	12.8 V
Nominal capacity	200 Ah
Nominal energy¹	2560 Wh
Cell chemistry	LiFePO4
Charge voltage	14.4 V
Standard charge current	70 A
Standard discharge current	100 A
Dimensions (L × W × H)	383 × 193 × 250 mm
Catalogue gross weight	16.5 kg
Enclosure	ABS

¹ Nominal energy = nominal voltage × capacity. Usable energy depends on discharge limits, load and operating conditions.

Reference: RV, VAN & Camper Battery Catalogue · specification table, page 4
Page reviewed: 2026-10-15 · Final specifications are agreed per order.

APPLICATION REVIEW

Put the battery in context.

Use the application guide to prepare the right questions before ordering.

RV & camper LiFePO4 batteries Portable & small backup power

BEFORE YOU ORDER

Let’s confirm the fit.

Electrical compatibility

Check charger voltage, continuous and peak loads, controller limits and protection settings.

Mechanical integration

Confirm dimensions, connectors, mounting, cable routing and the installation environment.

Validation & documents

Agree sample testing and request the current documentation for the exact model and destination market.

MODEL DOCUMENTS / CY-12V200Ah

The right information. The right revision.

Start with the public model overview. For engineering and order approval, our team checks document availability against your configuration and destination.

OPEN ACCESS

FROM FIRST SAMPLE TO REPEAT SUPPLY

Clear expectations at every step.

Meet the team behind the product

Define the order
Select the model, destination and quantities. Agree the sample scope, configuration and quotation.
Validate the sample
Review fit and performance in your equipment. Record the drawing, BMS settings and acceptance criteria.
Prepare the batch
Confirm the approved version, labels, packing, inspection requirements and shipment arrangements.
Plan ongoing support
Agree warranty coverage, fault-reporting information, local service responsibilities and repeat-order requirements.

Sample cost, MOQ, lead time, warranty and service arrangements are confirmed in your quotation and order terms.
