LiFePO464V 30Ah two / three-wheeler battery

Product image extracted from the supplied catalogue. Confirm the current drawing and connector version with your quote.

6430LFP

64V 30Ah two / three-wheeler battery

A 1.92kWh LiFePO4 pack from the CY two/three-wheeler catalogue, with a horizontal enclosure and carrying handles. For electric motorcycle, seated scooter and tricycle supply projects; confirm the controller, charger and mounting for your vehicle.

64VNominal voltage
30AhCapacity
1920WhNominal energy¹
Request a quotationRequest a sample

Wholesale & OEM enquiries · Pricing, MOQ and lead time confirmed per configuration.

Ask about this model on WhatsApp
  • Horizontal enclosure with handles
  • Two / three-wheeler catalogue series
  • Standard and heated versions: confirm configuration
ELECTRIC TWO & THREE-WHEELERS

AI-generated application illustration. Vehicle compatibility is confirmed per project.

ELECTRIC TWO & THREE-WHEELERS

A battery decision starts with the vehicle.

For motorcycle, seated scooter and working tricycle projects. Bring the vehicle platform and operating duty together with the pack specification before sampling.

  1. 01

    Controller & operating duty

    Share the controller input range, battery-side continuous current and peak duration. Include payload, hills and stop-start use.

  2. 02

    Battery bay & handling

    Check the current enclosure drawing, mounting points, handle clearance and connector position against your vehicle. Catalogue names alone do not identify every enclosure revision.

  3. 03

    Charging & configuration

    Confirm the charger output and connector polarity. Discuss the BMS, communication and any heating option for the exact configuration.

Review the fit for your project

BEFORE THE FIRST BATCH

Start with a useful sample plan.

Test starting, hill climbing, loaded operation and charging in the intended vehicle. Record controller settings and the approved pack revision.

Request a sample

A CLOSER LOOK / 6430LFP

Measure the space. Check the details.

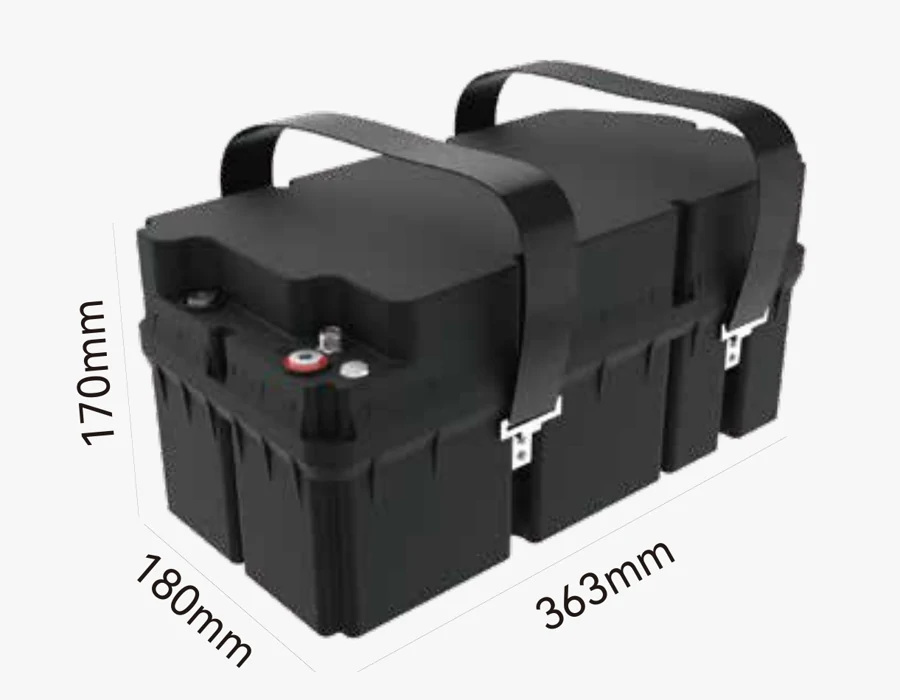

This dimensional view comes from our two- and three-wheeler catalogue. Use it for an initial space check, then request the current drawing for mounting and interfaces.

Plastic enclosure shown: 363 × 180 × 170 mm, excluding handles. Catalogue reference, not a controlled mounting drawing.

Ask for current model details
6430LFP plastic enclosure catalogue dimensions: 363 mm long, 180 mm wide, 170 mm high, excluding handles
Source: CY ENERGY two- and three-wheeler catalogue, page 4.

TECHNICAL REFERENCE

Know the details.

A clear specification is the starting point for a compatible battery system.

Open printable specification
64V 30Ah two / three-wheeler battery specifications
Nominal voltage64 V
Nominal capacity30 Ah
Nominal energy¹1920 Wh
Cell chemistryLiFePO4
Dimensions, excluding handles363 × 180 × 170 mm
Catalogue net weight20.5 ± 0.5 kg
Catalogue energy1.92 kWh
Capacity basis1920 Wh ÷ 64 V = 30 Ah

¹ Nominal energy = nominal voltage × capacity. Usable energy depends on discharge limits, load and operating conditions.

Reference: CY Two / Three-wheeler English Catalogue · page 4. Capacity calculated from catalogue energy and rated voltage.
Page reviewed: 2026-10-15 · Final specifications are agreed per order.

APPLICATION REVIEW

Put the battery in context.

Use the application guide to prepare the right questions before ordering.

Electric motorcycle & scooter batteriesElectric tricycle batteries

BEFORE YOU ORDER

Let’s confirm the fit.

01

Electrical compatibility

Check charger voltage, continuous and peak loads, controller limits and protection settings.

02

Mechanical integration

Confirm dimensions, connectors, mounting, cable routing and the installation environment.

03

Validation & documents

Agree sample testing and request the current documentation for the exact model and destination market.

MODEL DOCUMENTS / 6430LFP

The right information. The right revision.

Start with the public model overview. For engineering and order approval, our team checks document availability against your configuration and destination.

OPEN ACCESS

Product specification overview

Read the published technical data. Print or save a copy for your purchasing and engineering team.

View / save as PDFREQUEST FOR YOUR CONFIGURATION

Dimensions & interfaces

Request the current enclosure drawing, mounting details, connector layout and pin assignment.

Request document reviewREQUEST FOR YOUR CONFIGURATION

BMS & system integration

Discuss protection limits, monitoring, communication and charger requirements for the selected configuration.

Request document reviewREQUEST FOR YOUR CONFIGURATION

Transport & market documents

Request the applicable SDS, UN 38.3 test summary and destination-market documentation for the exact model.

Request document review

FROM FIRST SAMPLE TO REPEAT SUPPLY

Clear expectations at every step.

Meet the team behind the product

  1. Define the order

    Select the model, destination and quantities. Agree the sample scope, configuration and quotation.

  2. Validate the sample

    Review fit and performance in your equipment. Record the drawing, BMS settings and acceptance criteria.

  3. Prepare the batch

    Confirm the approved version, labels, packing, inspection requirements and shipment arrangements.

  4. Plan ongoing support

    Agree warranty coverage, fault-reporting information, local service responsibilities and repeat-order requirements.

Sample cost, MOQ, lead time, warranty and service arrangements are confirmed in your quotation and order terms.
